BlazeTroffer 22

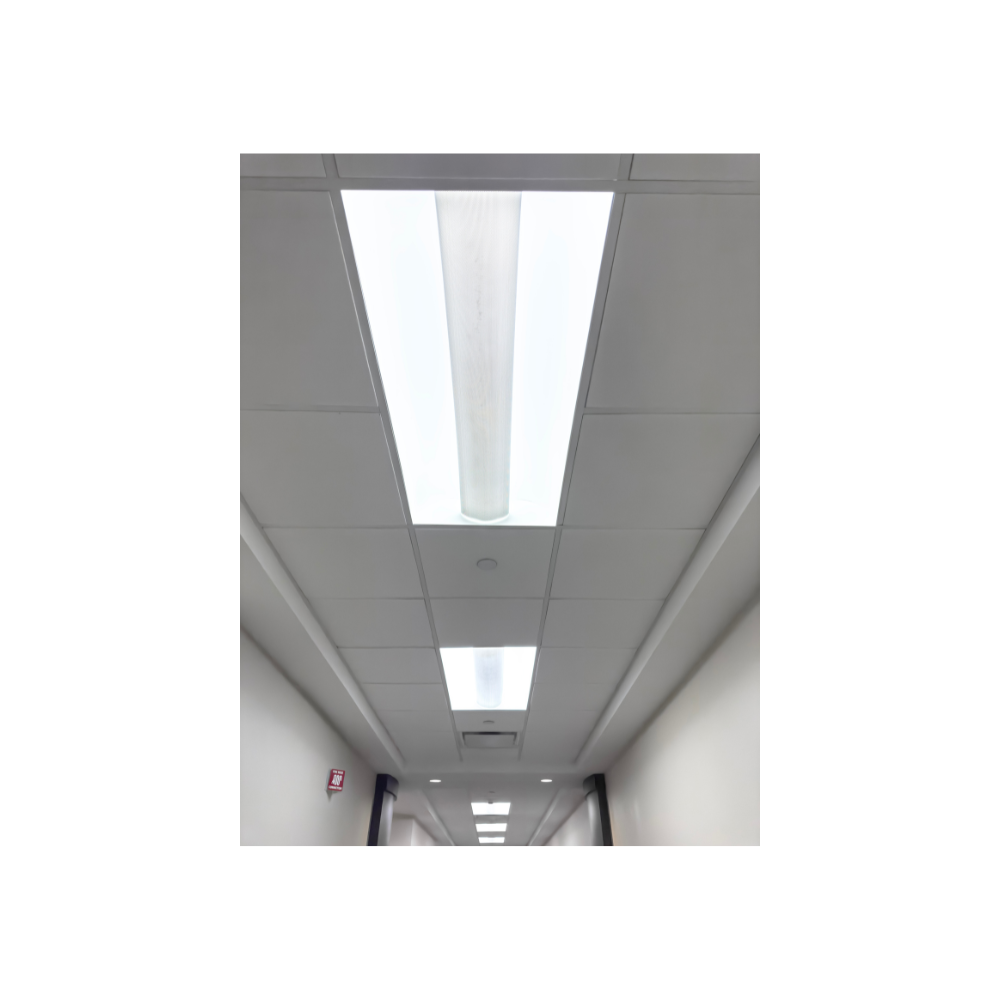

BlazeTroffer 22 offers efficient, bright, and uniform illumination in a compact 2×2 format, making it an excellent choice for modern commercial and residential applications. Designed with a sleek, contemporary profile, it delivers consistent, glare-controlled lighting while helping reduce energy consumption and operating costs. Its durable construction ensures long-lasting performance with minimal maintenance, while the simple installation process makes it ideal for both new projects and retrofit upgrades. Perfect for offices, schools, healthcare facilities, retail spaces, and other interior environments, BlazeTroffer 22 combines reliability, efficiency, and modern style in one versatile lighting solution.
SKU: PLLSBT 2x2 Categories: , ,

Description

Product Specification

Model: PLLSBT 2x2
Wattage: 20W-72W Power Selectable
Lumens: 130LM/W
Voltage: 120-277 /120-347 VAC
CCT(K): 3000/3500/4000 /5000/6500 CCT Tunable
CRI: >95Ra
DIM: 0-10V
IP Rating: Dry Location
Lifespan: @25◦ C>54000hrs
Size: 23.74"(603mm) x 23.74"(603mm) x 1.97"(50mm)
Cut Size: 2x2 Standard Size
Warranty: 2 Years

Request Product Specefication

Datasheet

Download
