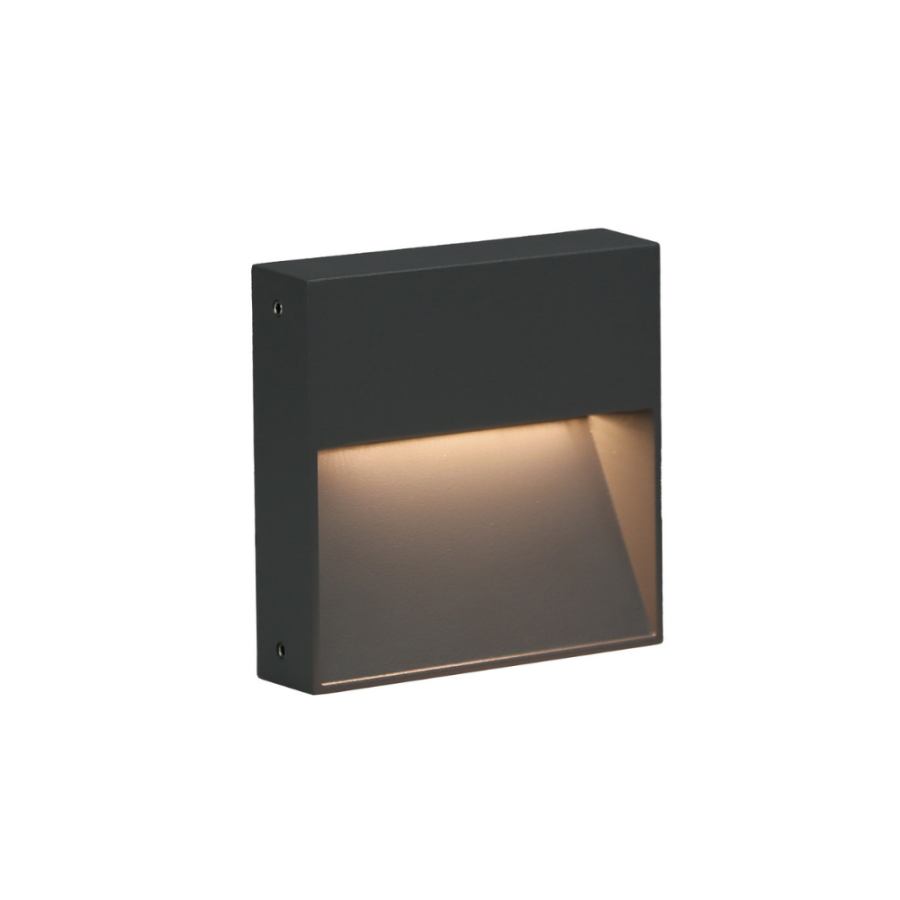

SL-03

SL-03 is a concrete step and wall light ideal for retaining walls and stair applications. Designed for installation into stair risers, it effectively illuminates the step tread while providing a clean architectural look. Featuring a baffle reflector for glare control, SL-03 is available in 24VDC with a remote driver or 110–277VAC for direct power connection.

SKU: SL-03 Categories: , ,

Description

Model: SL-03
Wattage: 4.8W
Lumens: 104LM
Voltage: 24VDC/110-277VAC
CCT: 3000K
CRI: >80
DIM: NO
IP Rating: IP65
Lifespan: 50000 Hrs
Size: 10.039" x 2.99" x 2.75"
Warranty: 5 Years

Additional information

Weight 1.135 kg
Dimensions 11 × 4 × 4.5 in

Installation Procedure

Download

3D Video

Download

Datasheet

Download
