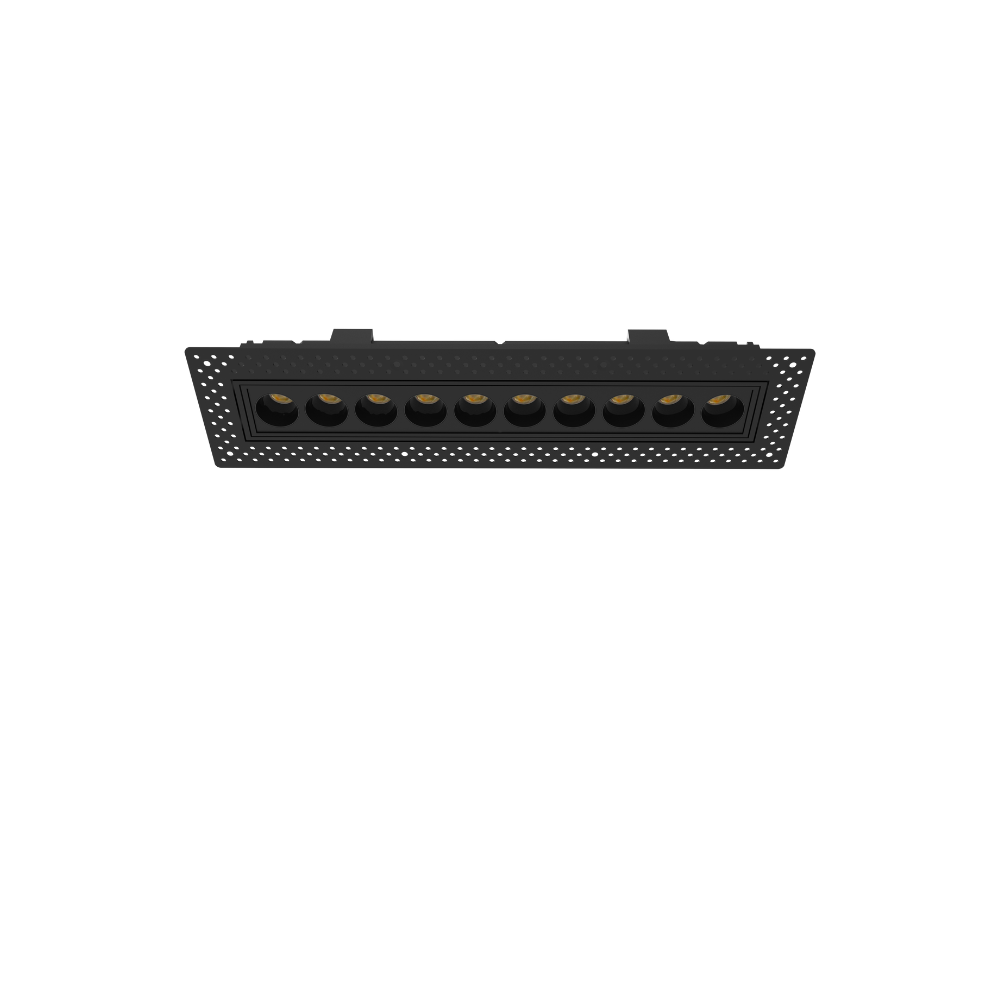

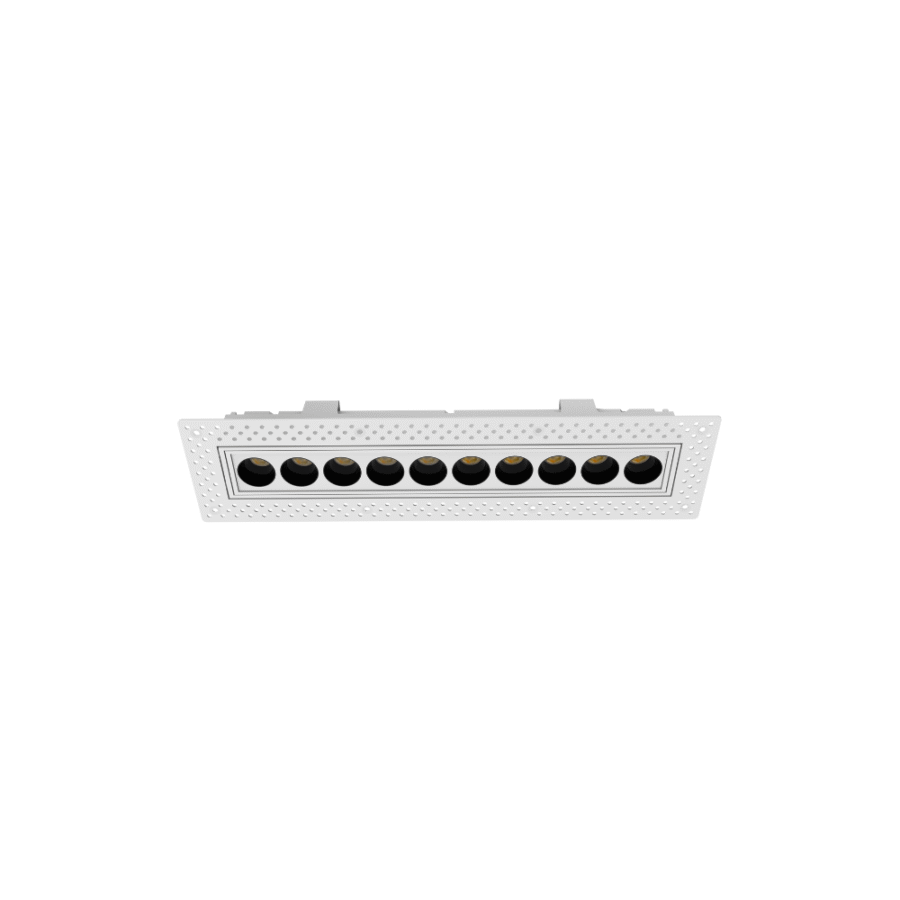

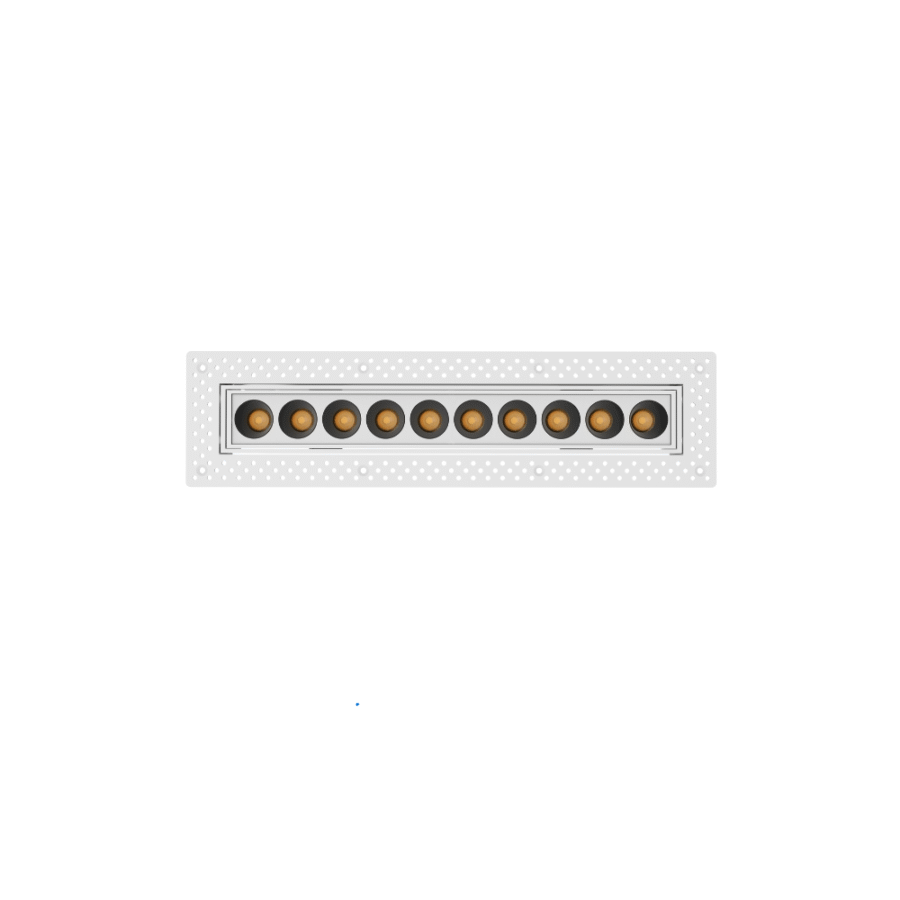

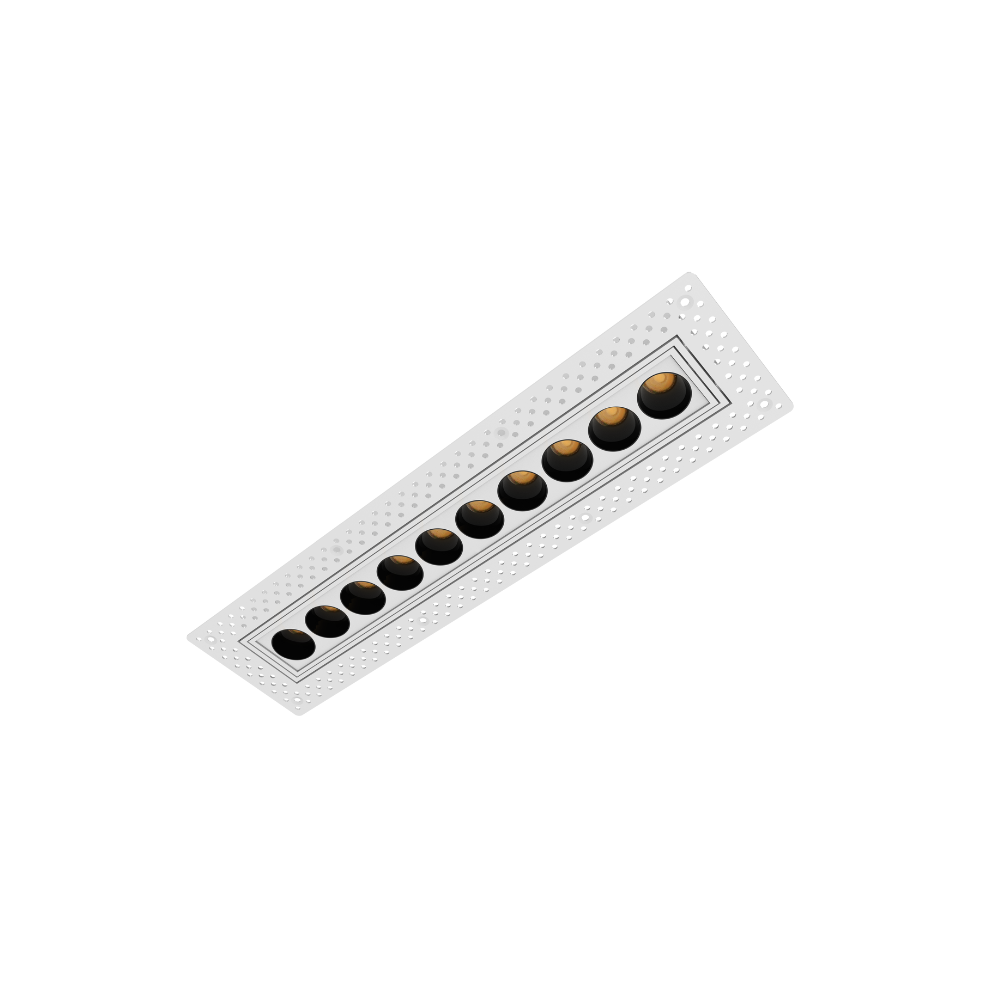

Orbis Micro TL10
Orbis Micro TL10 - Image 2
Orbis Micro TL10 - Image 3
Orbis Micro TL10 - Image 4

Orbis Micro TL10

Orbis Micro Trim less Series features a sleek, modern design that integrates seamlessly into ceilings for a clean, minimalist look. Its slim linear profile delivers smooth, energy-efficient light with no visible trim—ideal for highlighting architecture or creating refined ambient lighting in high-end residential, retail, and commercial spaces

Categories: , ,

Description

Product Specification

Part Number:
Wattage: 20W
Lumens: 1200LM@4000K
Voltage: 100-130V AC, 50/60HZ
CCT: 27K/30K/35K/40K/50K 5CCT Tunable
CRI: >90Ra
DIM: Triac
Beam Angle: 15°/24°/36°
Environment: Damp Location
Lifespan: 50000hrs
Size: 12.59" x 3.2" x 2.3"
Cut Size: 11.25" X 1.88"
Warranty: 2 Years

Request Product Specefication

Datasheet

Download
