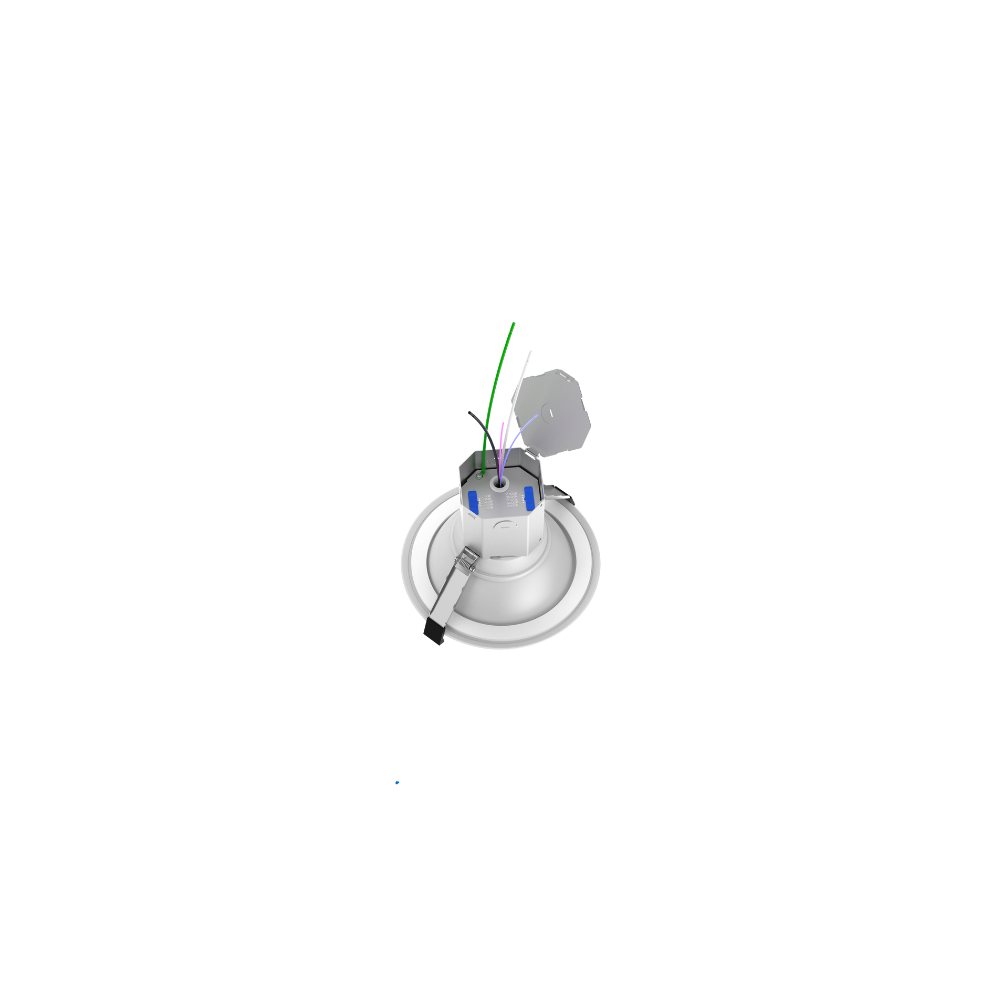

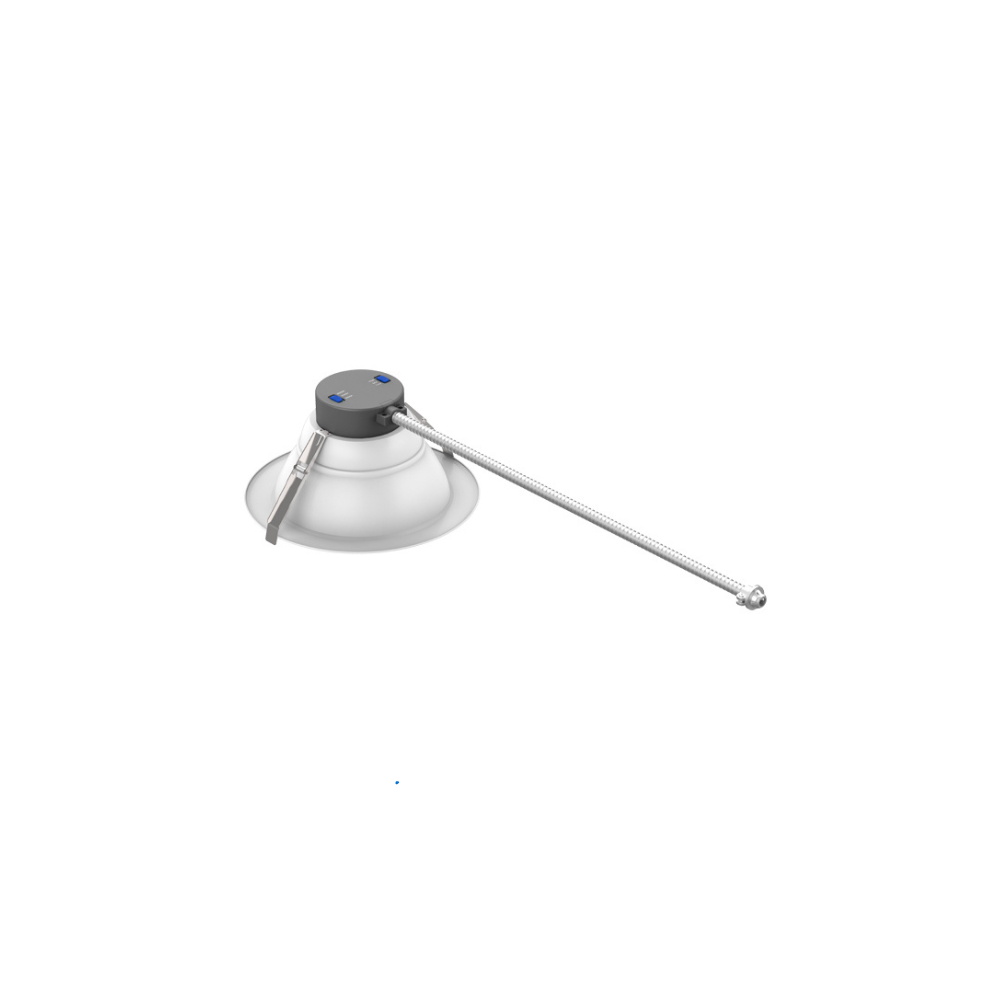

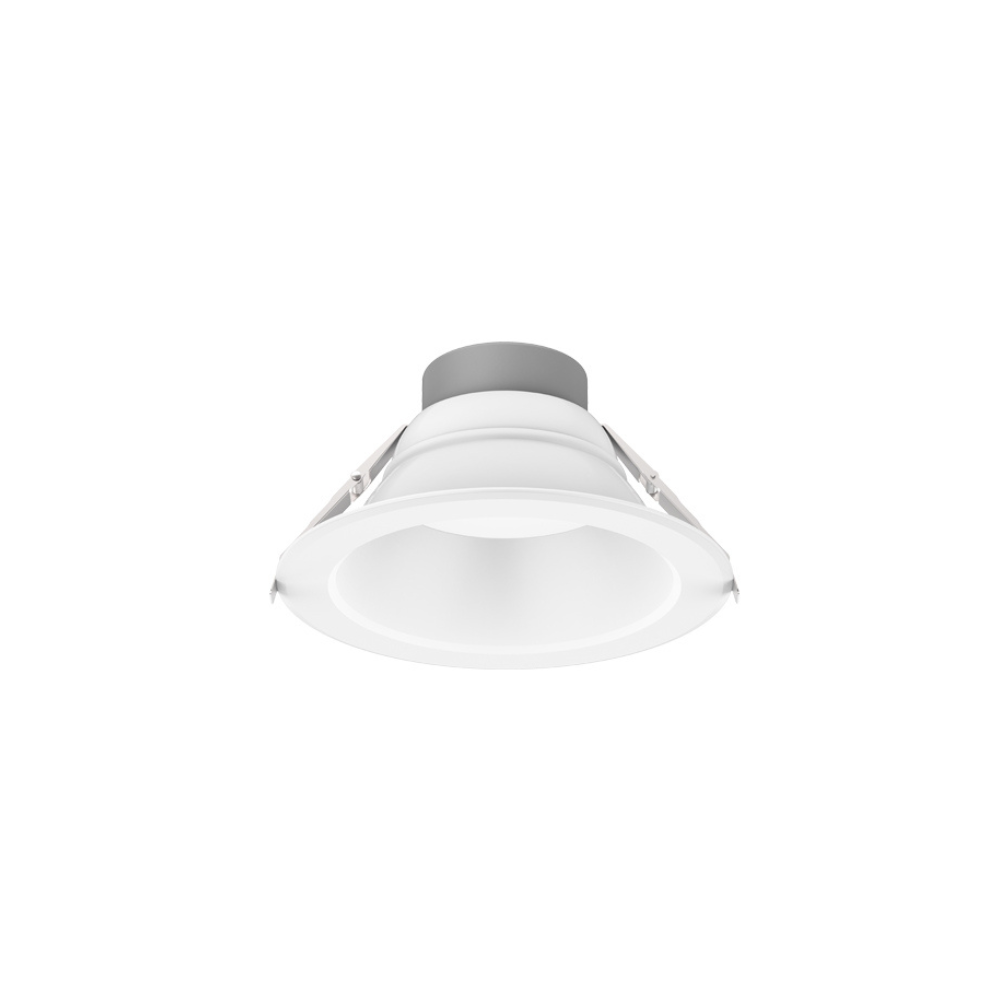

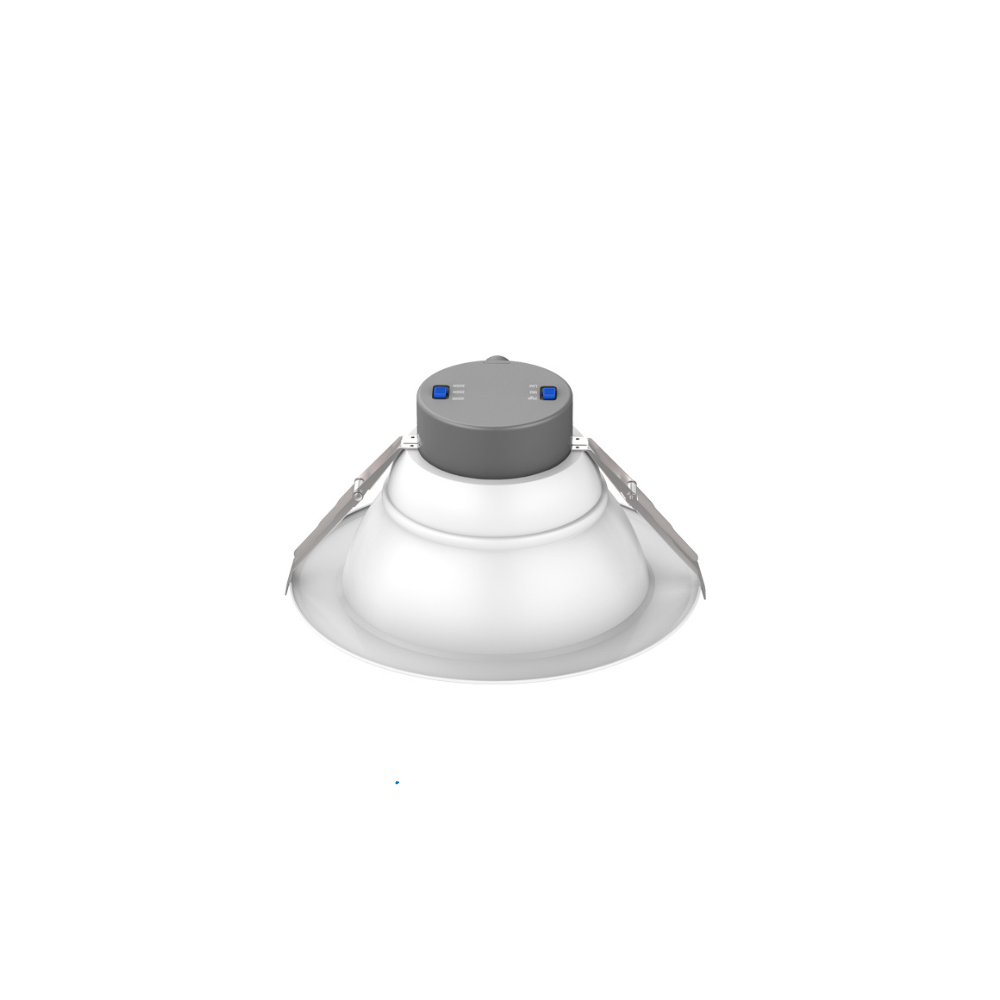

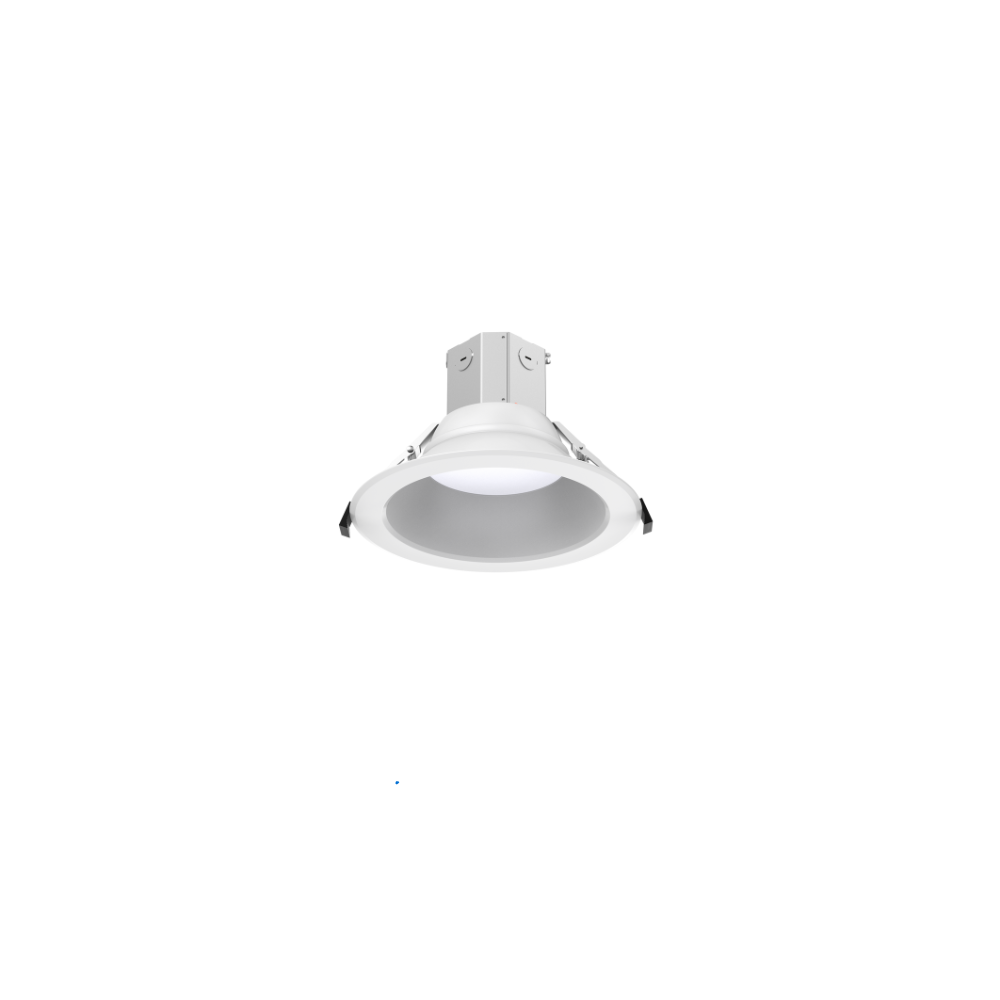

The Revo Series is a versatile and high-performance LED retrofit solution designed to modernize outdated 5-6″ potlights in older commercial spaces. Available in 4″, 6″, 8″, and 10″ sizes, it features wattage and CCT selectability ,delivering a wide range of lumen outputs to meet various lighting needs .Designed for both retrofit and new construction, the Revo can be optionally equipped with an emergency driver and rough-in plate, making it ideal for drywall or T-bar ceiling installations. IC-rated and wet-location approved, the Revo Series combines performance, flexibility, and reliability—making it an ideal choice for commercial lighting upgrades
Revo
NewDescription
Part Number: Revo IV VI VIII X
Wattage: 8-40 Watt selectable
Lumens: 130-140lm/w
Voltage: 120VAC / 120-277VAC / 120-347VAC
CCT: 5CCT selectable (2700K-5000K)
CRI: >80
DIM: 1-10V Dimming / Triac Dimming
Beam Angle: 80° 4"&6" 90° 8"&10"
Environment: Wet Location
Lifespan: L80 (17K) :102,000hrs
Size: Refer to datasheet
Cut Size: Refer to datasheet
Warranty: 5 Years
